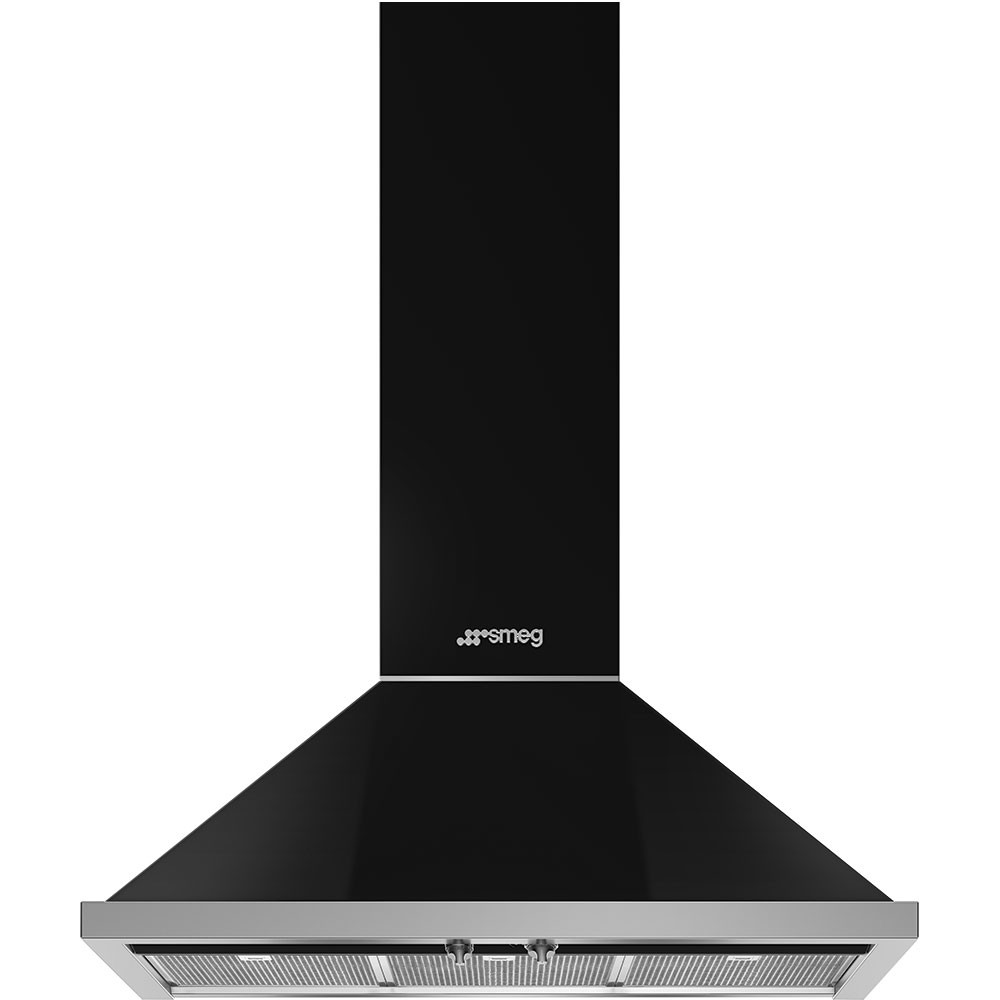

KPF9BL
10 in stock
Product family: Hood
Subfamily: Decorative wall hood
Aesthetics: Portofino
Serie: Portofino
Colour: Black
Hood width: 90 cm
Energy efficicency class ( EEC): A+
Type
Product family: Hood
Hood Type: Decorative wall hood
Hood width: 90 cm
Extraction: Extraction
EAN code: 8017709236304
Aesthetics
Colour: Black
Aesthetics: Portofino
Design: Chimney
Material: Stainless Steel + Painted Material
Type of steel: Brushed
Controls
Control setting: Control knobs
Control knobs: Portofino
No. of controls: 2
Controls colour: Steel effect
Programs / Functions
No. of speeds: 3
Intensive speed: Yes
Technical Features
No. of lights: 2
Light type: LED
Light Power: 2 W
Light color temperature scale (°K): 4000 °K
Free outlet maximum capacity: 815 m³/h
Motor power: 275 W
No. of filters: 3
Anti-grease filters: Stainless steel
Minimum distance from GAS hob: 750 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 650 mm
Non return valve: Yes
Performance / Energy Label
Energy efficicency class ( EEC): A+
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 40,1 kWh/a
Fluid Dynamic Efficiency (FDE): 36,2
Lighting Efficiency (LE): 78,2 lux/W
Grease Filtering Efficiency (GFE): 78,5 %
Air flow at minumum speed (Qmin): 288 m³/h
Air flow at maximum speed (Qmax): 630 m³/h
Air flow at boost speed (Qboost): 781 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
Time increase factor (F): 1
Energy Efficiency Index: 40,3
Measured air flow rate at best efficiency point (Qbep): 413 m³/h
Measured air pressure at best efficiency point (Pbep): 476 Pa
Measured electric power input at best efficiency point (Wbep): 151 W
Nominal Power consumption of the light system (WL): 2 W
Average illumination of the light on the cooking surface (Emiddle): 172 lux
Sound power level at highest setting (Lwa): 67 dB(A)
Electrical Connection
Electrical connection rating: 277 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Speed 1
Extraction rate IEC 61591: 288 m³/h
Noise level IEC 60704-2-13: 48 dB(A)
Power: 173 W
Speed 2
Extraction rate IEC 61591: 421 m³/h
Noise level IEC 60704-2-13: 63 dB(A)
Power: 199 W
Speed 3
Extraction rate IEC 61591: 630 m³/h
Noise level IEC 60704-2-13: 67 dB(A)
Power: 223 W
Intensive speed
Extraction rate (IEC 61591): 781 m³/h
Noise level IEC 60704-2-13: 72 dB(A)
Power: 224 W
Logistic Information
Dimensions of the product (mm): 1227x896x495
Width: 896 mm
Depth (mm): 495 mm
Product Height (mm): 1227 mm
| Aesthetic |
Portofino |
|---|---|
| Colour |
Black |
| Energy Efficiency Class |
A+ |
| Hood width |
90 cm |
| Product Family |
Hood |
